See more photos below |

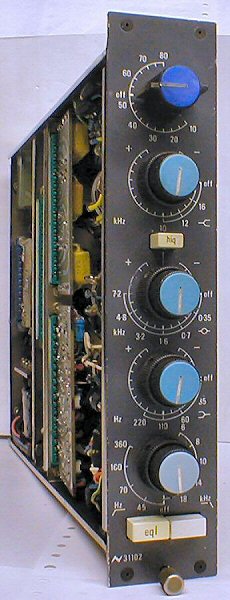

Neve 31102Sorry, these are sold out. We have other Neve Modules for sale, see our main Neve page. These modules were custom designed for Phil Ramone's famed A&R Studios in New York. They are basically the same design (and almost the same pinout) as a 1073 but with more features, more frequency choices, a HF Selector Switch and a Hi Cut Filter the 1073 doesn't have. They are also very similar to the 1064, except that they use concentric knobs which makes the 31102 more compact. We can rack up any number of these, either vertically or horizontally, in practically any configuration you want, with connections for Mic. and Line inputs and even phantom power. Or you may order them "raw". You will get a diagram as to how to hook them up for both microphone and line inputs, with a switch. They require only a single 24 volt DC supply.. Sonic Circus currently lists one of these for $3500. Frequencies:

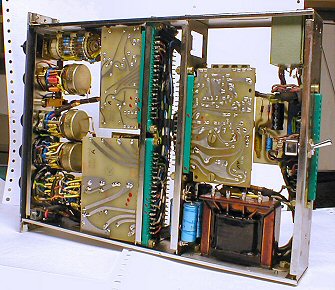

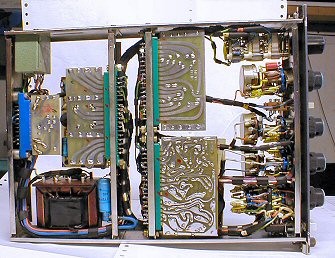

Features:Preamp Level settings from -10 to -80Hi-Q Button for Mid Frequency Knob 1-L10468 Microphone Input Transformer LO1166A Output Transformer EQ In/Out Button Phase Reverse Button Balanced Mic. In Unbalanced Line In Balanced Line Out Components:This unit includes the following Neve PC Board Modules:B182 ISS2, B211 3, B283, B205, B284, B194, B106 See pictures of internal layout below
Price:$2750.00 US
ContactPlease call us at 212-925-1365 during business hours (9-5 EST). If you must email us, please use our contact form. |
