Neve 32069Beautiful Working Vintage Neve Microphone Preamp and Mic/Line Equalizer from 8068 Style Console. Fully discrete Class A circuitry, no ICs. Sounds Great.These modules were custom designed for George Martin's famed Air London Studios They are basically the same design (and almost the same pinout) as a 1073 but with more features and more frequency choices. They are also very similar to the 1064, except that they use concentric knobs which makes the 32069 more compact. This Line Preamp has a Microphone Preamp as well.with adjustable gain and a push-pull gain stage boost using an internal Neve preamp. We can rack up any number of these, either vertically or horizontally, in practically any configuration you want, with connections for Mic. and Line inputs and even phantom power. Or you may order them "raw". You will get a diagram as to how to hook them up for both microphone and line inputs, with a switch. They require only a single 24 volt DC supply.. Frequencies:

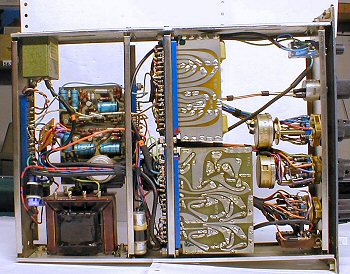

Features:1-L10468 Microphone Input TransformerLO1166A Output Transformer EQ In/Out Button Phase Reverse Button Balanced Mic. In Unbalanced Line In Balanced Line Out Components:This unit includes the following Neve PC Board Modules:B180, B181, B182, B183, B184. See pictures of internal layout below Price:$2250.00 US each (3 Available)Contact |
