Acoustilog 4 Band EQs

Back to the Main Neve Module Sale Page

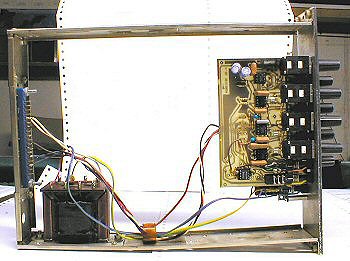

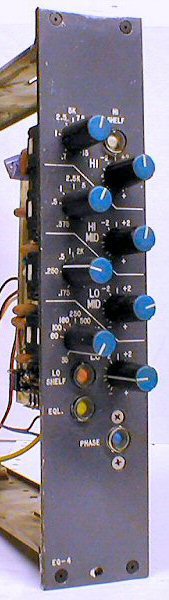

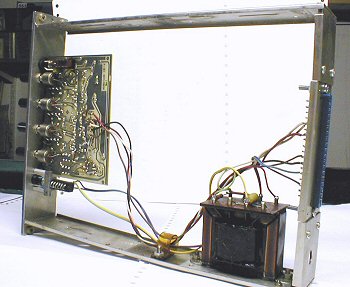

Acoustilog EQ-4

These were designed to fit in Vintage Neve Consoles, providing continuously variable EQ Frequencies and a shelving option for the HF and LF bands, two features not found on the original Neve EQs. In addition, each band has a very wide range of frequencies which overlaps the adjacent bands, giving you a great deal of flexibility and control. See the list of frequencies below.

These EQs can be retrofitted to your Neve, or racked up as outboard EQs. Hookup diagram provided. Requires only +/- 15VDC.

EQ Frequencies:

LF 35Hz - 800Hz
Hi-Mid 175Hz - 4KHz
Lo-Mid 375Hz - 8KHz
HF 700 Hz - 15KHz

Features:

Shelving or Peaking Contour Selector for LF Band
Shelving or Peaking Contour Selector for HF Band
Neve LO1166A Output Transformer
EQ In/Out Button
Phase Reverse Button

Price:

$1250.00 US each (4 Available)
